DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement

제품 상세정보

원래 장소: 중국

브랜드 이름: RION

인증: CE, FCC , ROHS

모델 번호: DMI815/825

문서: DMI815 DMI825 DIGITAL DISPL...ER.pdf

지불과 운송 용어

최소 주문 수량: 1개

가격: $438.00/Pieces

포장 세부 사항: 판지 상자

배달 시간: 5 ~ 8 근무일

지불 조건: 티/티

공급 능력: 3000/month

최상의 가격을 얻으세요
지금 접촉하세요
상술
강조하다:

Industrial Digital Inclinometer

,

DMI815/825 Digital Inclinometer

,

High Precision Digital Inclinometer

측정된 정확도:
< 0.005°
각 분해능:
0.001 ' 0.001 '
측정 범위:
± 30°
LCD 화면:
64색 트루컬러 야광 디스플레이
방수 등급:
IP54
크기:
L117*W75*H27mm
측정된 정확도:
< 0.005°
각 분해능:
0.001 ' 0.001 '
측정 범위:
± 30°
LCD 화면:
64색 트루컬러 야광 디스플레이
방수 등급:
IP54
크기:
L117*W75*H27mm
기술
DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement

GENERAL DESCRIPTION

DMI815/825 is a digital display inclinometer for angle control and measurement in various industrial fields. The core of this product is to adopt the micro-mechanical control principle and dual-core measurement unit. In the measurement process, the Y-axis can be used to compensate the X-axis, and then the interleaving and temperature compensation model algorithm can be used to give full play tothe operational advantages of the micro-mechanical electronic principle. And the long-term stability and repeatability of the instrument measurement are ensured. ± 30 ° measurement, resolution of 0.001 °, accuracy of < 0.005 ° full range, fast response, stable data, easy installation and use, this product has data storage function, three measurement modes (angle, degree, minute and second, mm/m), powerful expansibility, convenient practical application, industrial reliability, high cost performance, It has certain competitive advantages in the international market!

FEATURES

Measured accuracy: < 0.005 °
Angle resolution: 0.001 °
Filter frequency optional
Measurement range: ± 30°
Absolute/relative measurement can be switched
With data storage function
Automatic angle interleaving compensation function
Fixed installation can be measured
Working temperature -10~ + 70
Angle/length double unit switching
Night vision four-color screen
Customers can calibrate the zero point by themselves
Alarm angle can be set
3 measurement modes (angle, degree, minute and second, mm/m)

APPLICATION

Building construction
Production fixture
Vehicle four-wheel detection
Mechanical installation
Pipeline installation
Industrial platform
PTZ angle detection
Turntable detection
Medical instrument
Road slope

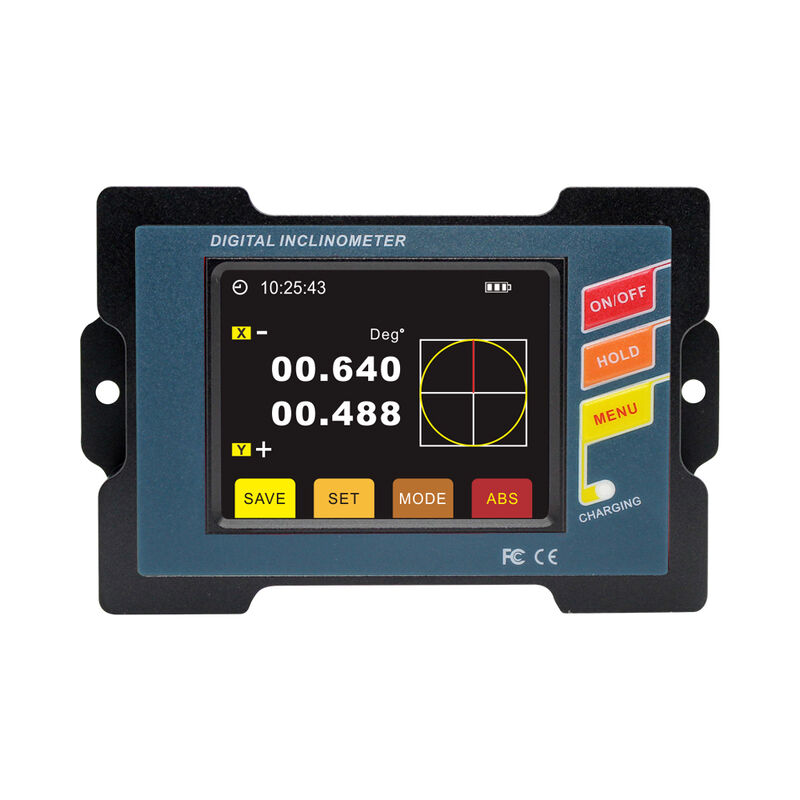

DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement 0
DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement 1

DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement 2
